Tensioning Solutions for GE Frame 7 Gas Turbines

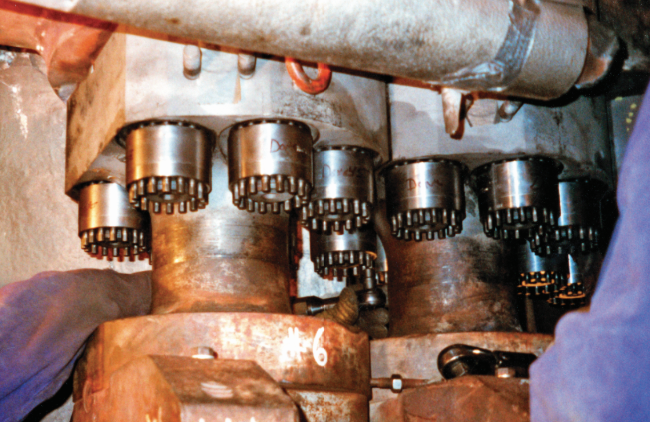

Casings

Boltight hydraulic bolting systems maximize efficiency of bolting procedures, thus minimizing downtime. Utilizing hydraulics guarantees that there will be no thread galling or spot face damage to casings.

Tops on/tops off steam turbine casing procedures can be carries out in just a few hours rather than the possible days required where bolt heating is used.

Bolting procedures can be accurately performed on gas and steam turbine casings without the concern of bolt seizures.

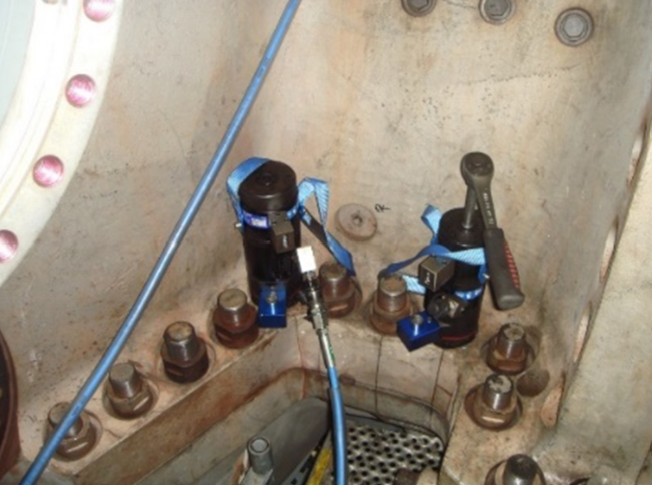

Valves

Utilize tensioning to eliminate the possibility of thread galling. Nord-Lock Group tensioning solutions can be utilized in confined spaces without heavy or cumbersome equipment, improving worker safety when tightening large diameter bolts. Disassembly is easy, maintaining critical schedules for maintenance.

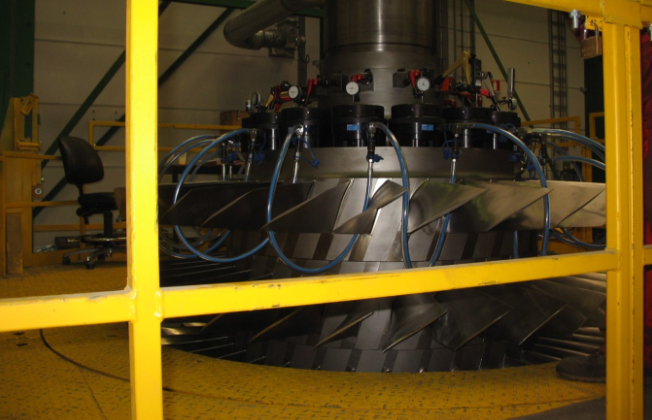

Rotors

Boltight hydraulic rotor tools are installed at all major GE service centers. A modular system provides flexibility to suit any application. Our engineers work with you to determine the best bolting solution for any application.

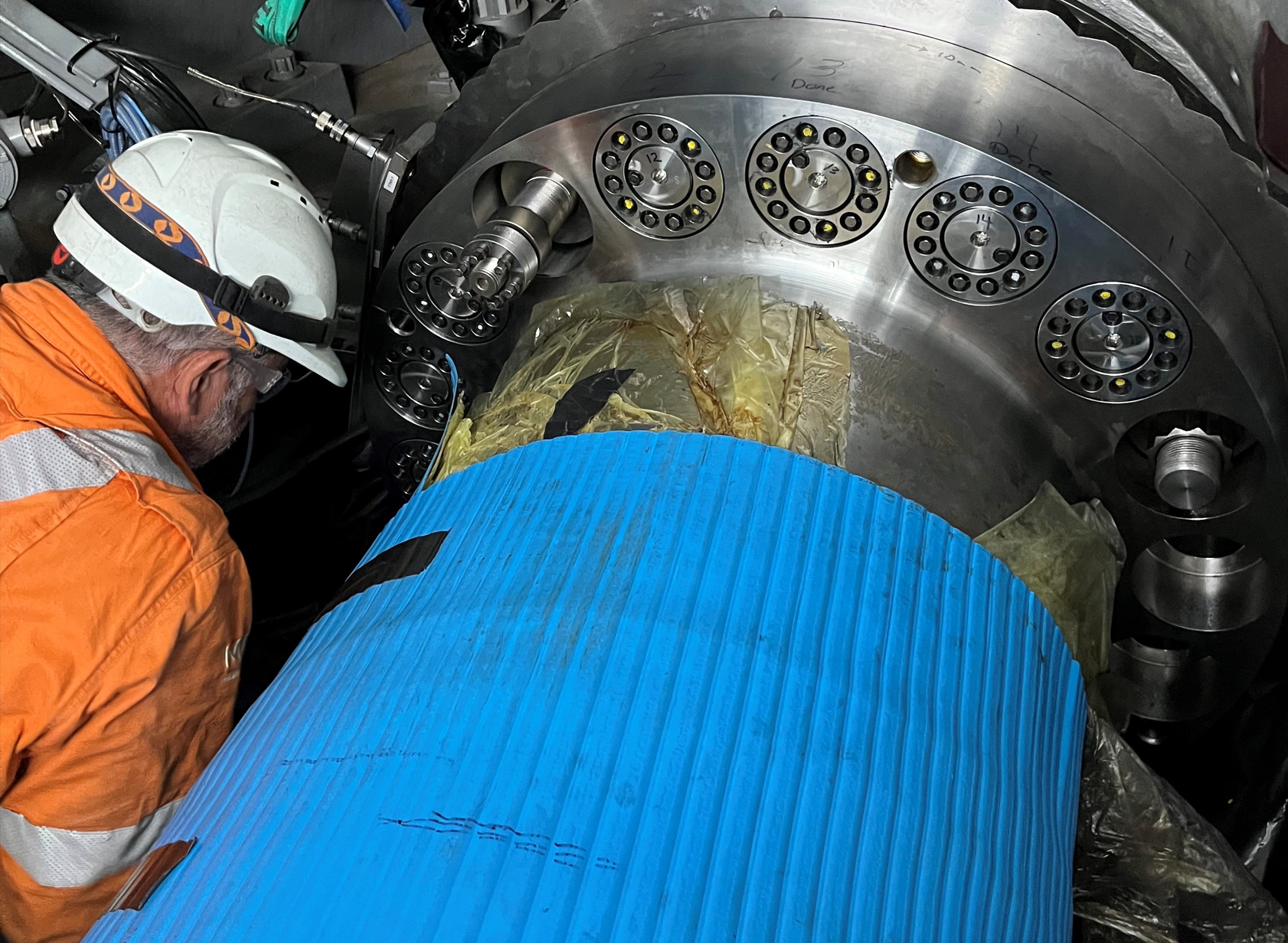

Coupling Bolts

Superbolt expansion sleeve bolts replace standard bolts to increase worker safety and reduce bolt and hole damage.

A conical bore sleeve is fitted onto a conical body bolt in clearance condition for the hole. The sleeve is held in place inside of the hole while the bolt is pulled through, thus expanding the sleeve into the hole to give a truly fitted bolt. By subsequent removal of the bolt from the sleeve, the sleeve retracts in diameter and the sleeve is again removed in clearance condition, preventing bolt and hole damage.

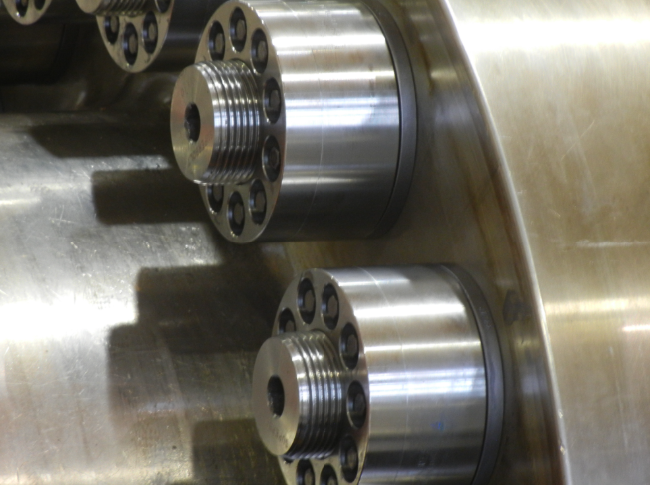

Superbolt EzFit mechanical coupling bolts have been developed to be easily installed and removed using only simple hand tools. Specially designed captive jackbolt and split sleeve technology is used to provide greater expansion capability and reliable operation for gas turbines, steam turbines, and ancillaries.
